Product Details
This is a J1 listing. Just one available! Picture(s) are of the actual item being sold. You will receive the EXACT items shown in the picture(s). All J1 items are sold as-is. We do not accept returns of J1 items.

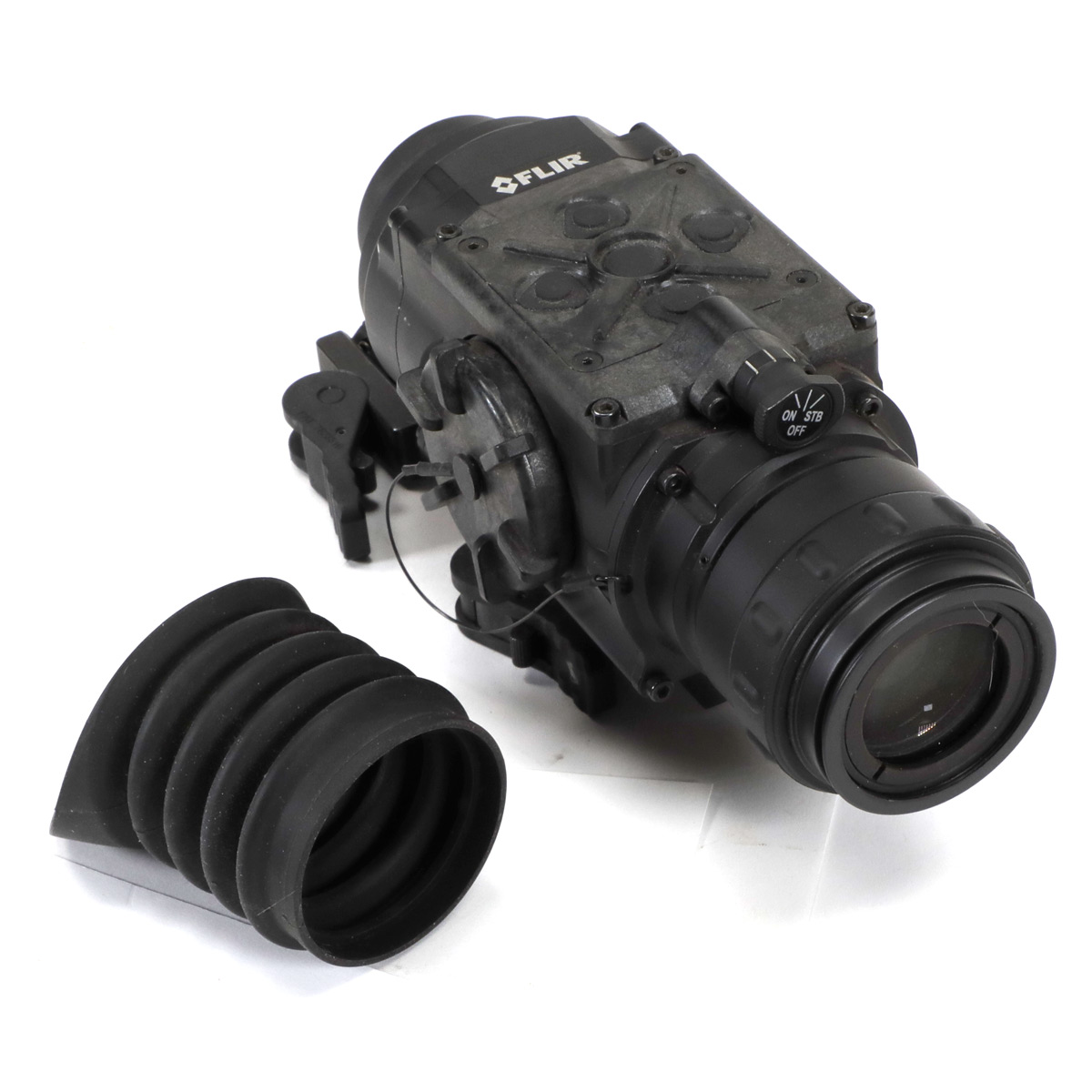

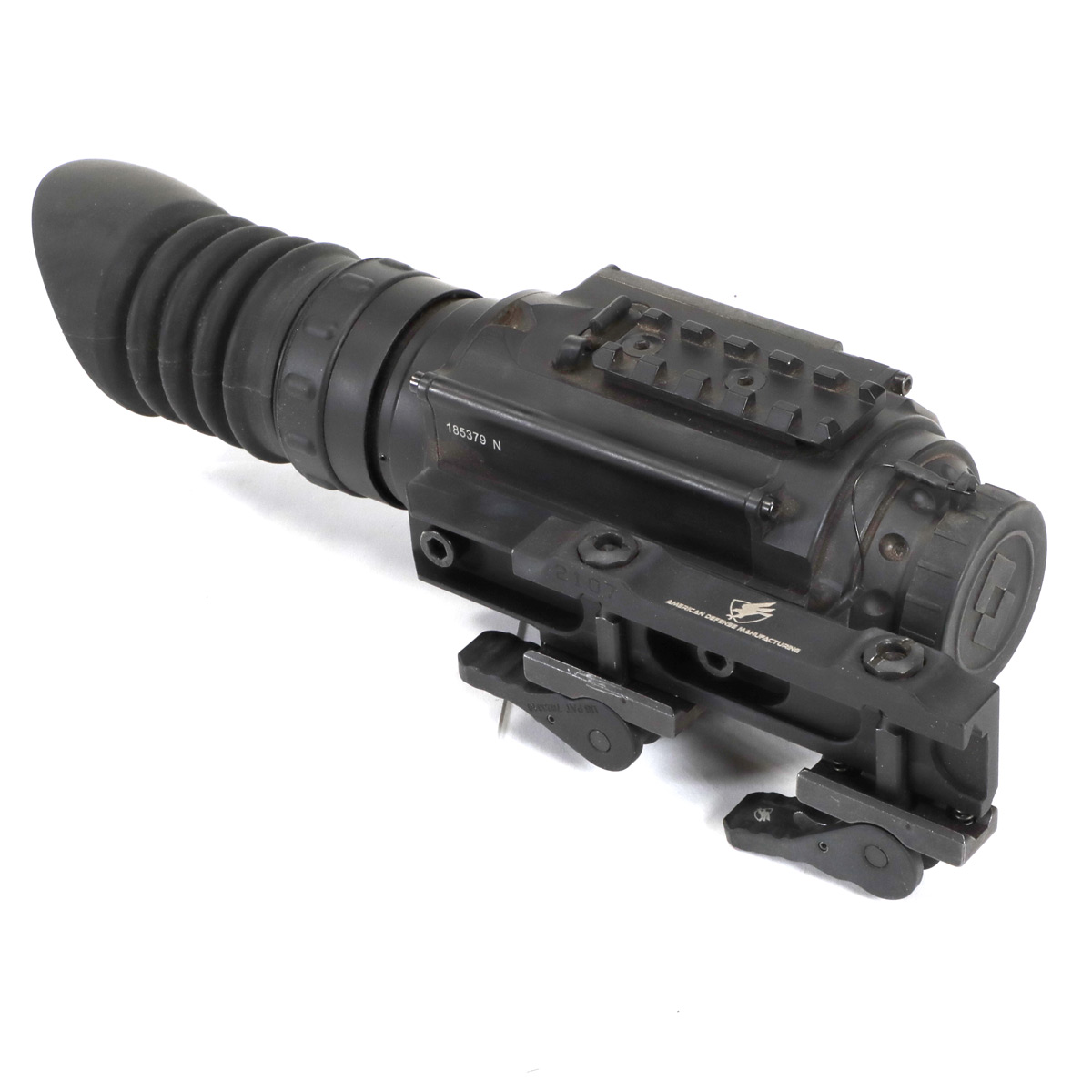

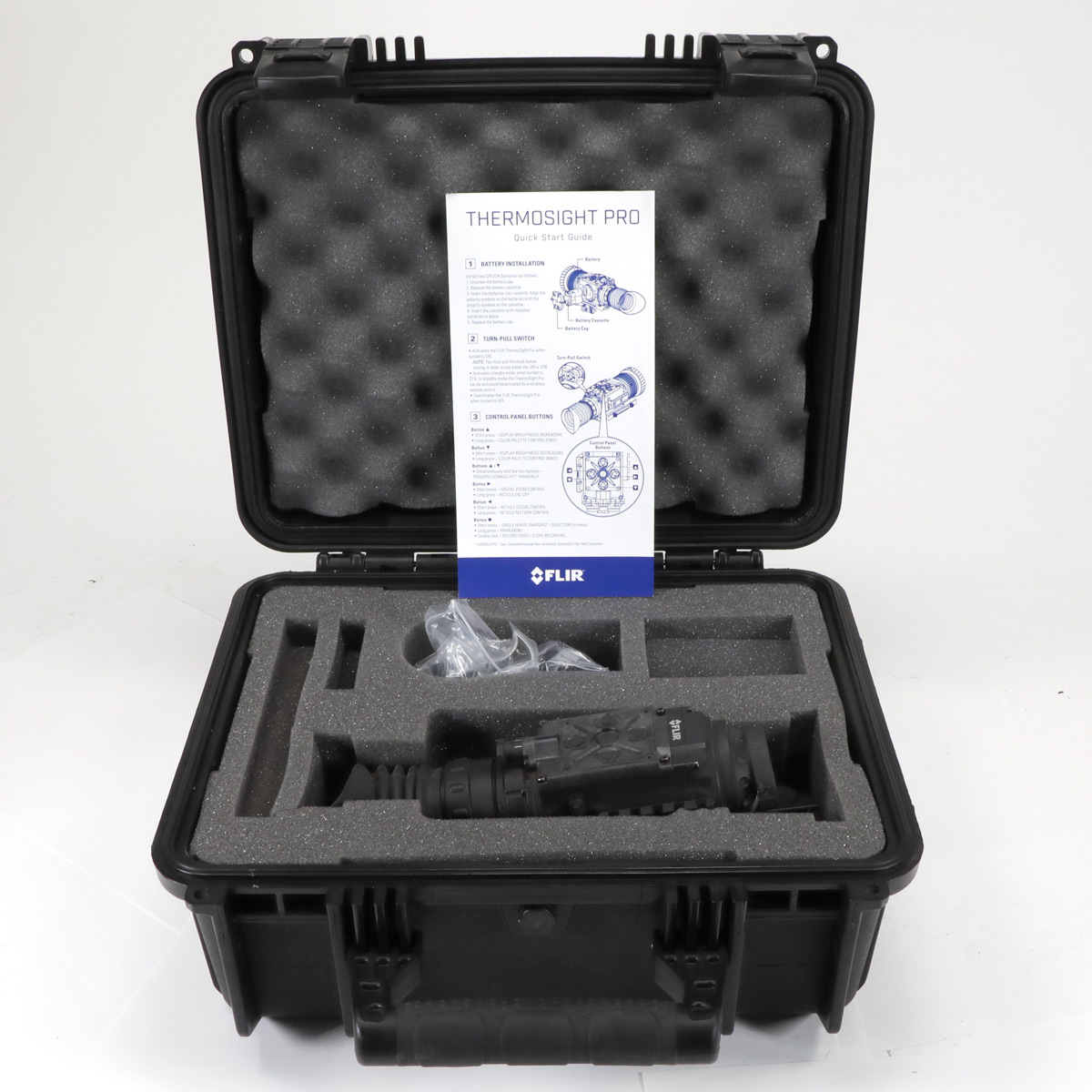

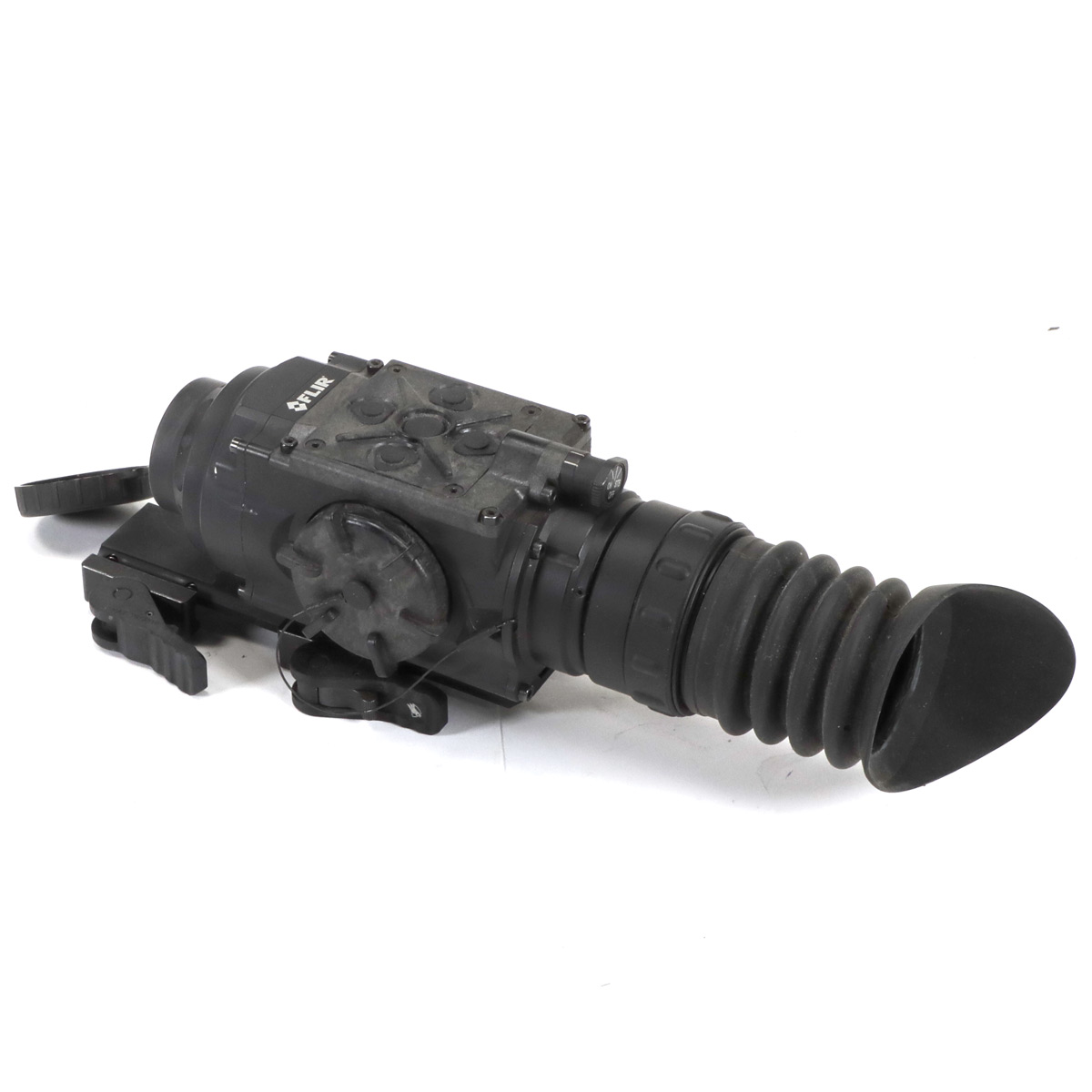

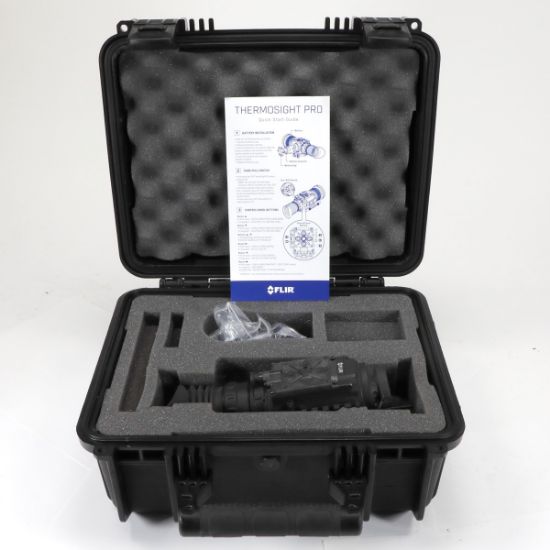

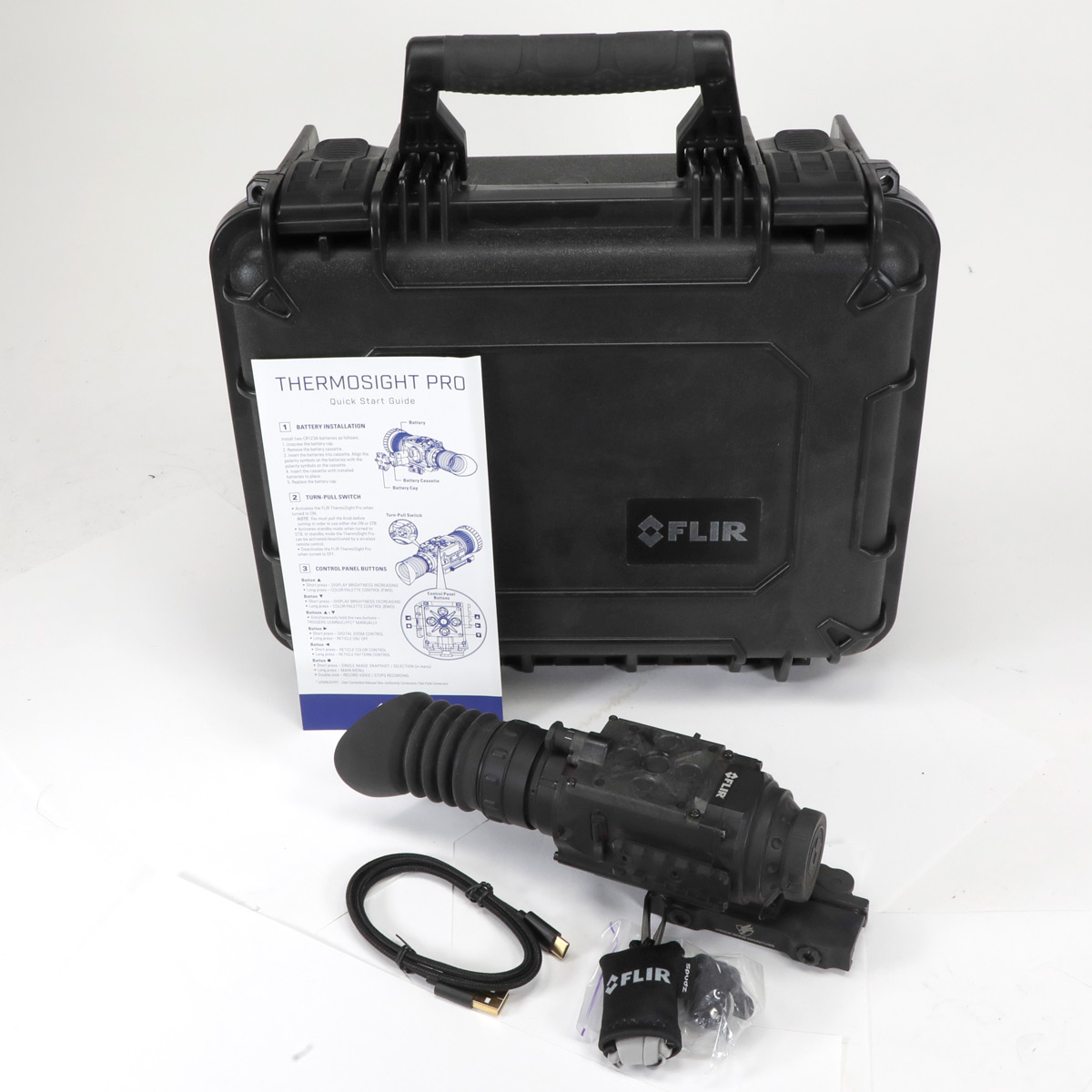

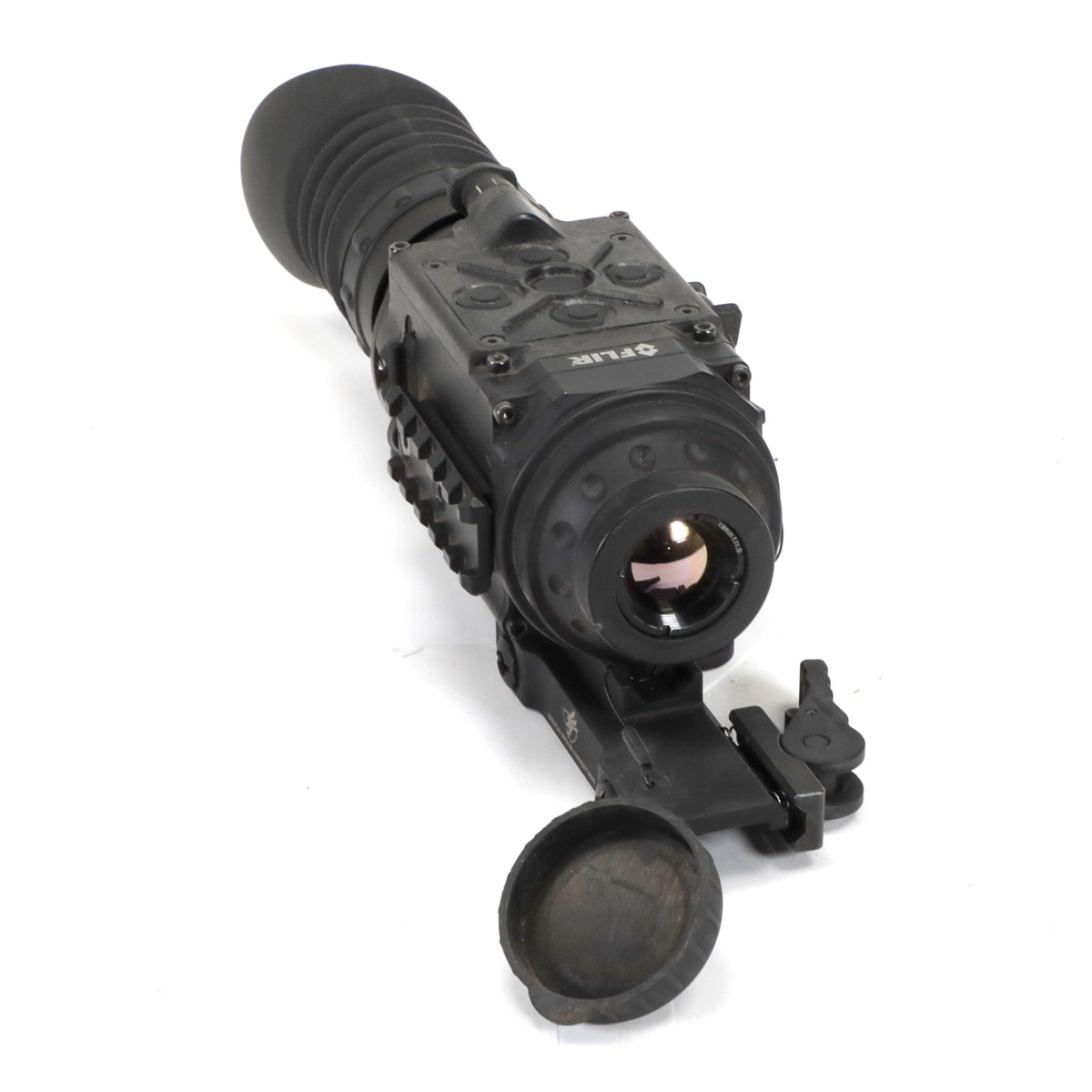

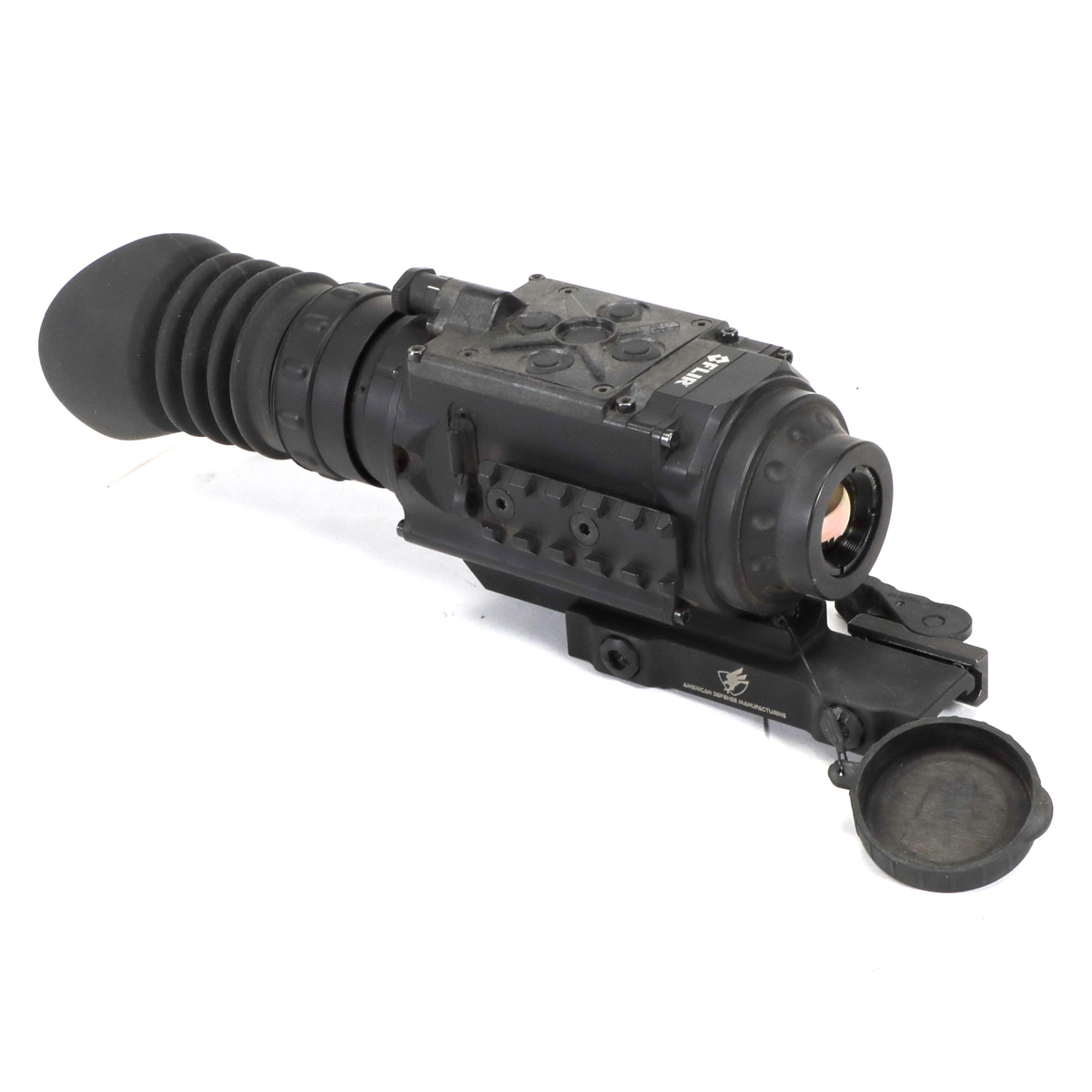

Lightly used Flir Thermosight Pro PT233 1.5-6x19 Thermal Imaging Weapon Sight. Comes with case and all accessories pictured.
Original manufacturer info on the PT233:
The FLIR ThermoSight Pro Series sets a new standard in thermal image quality.
With multiple features packed into a compact housing, the ThermoSight Pro Series delivers brilliant, clean thermal imagery in low contrast daylight scenes, as well as in total darkness. Equipped with shot activated video recording and FLIR’s patent pending High Visibility Technology (HVT) reticle, the FLIR ThermoSight Pro Series is the perfect addition to any hunting or security weapon platform.
It is powered by the new FLIR Boson core, featuring a 12 µm pixel pitch sensor, industry leading on-chip video processing. The uncompressed video signal is paired with a high definition display for better detection and classification in the field.
EXCEPTIONAL VISION
Advanced image processing eliminates the guesswork
• Completely digital for better detection, classification and recovery, day or night
• Built using the new FLIR Boson thermal core
• Bright, high definition FLCOS display for absolute clarity
COMPACT and POWERFUL
Perfect balance of size and performance
• Powerful and compact hardware is protected by a robust aircraft-aluminum alloy body
• Featuring a 12 µm pixel pitch and industry leading on-chip video processing
• Outstanding thermal image quality in total darkness or through smoke, haze, fog, rain
SUPERIOR VALUE
Packed with features for a versatile and customizable viewing experience
• On-board video recording, image capture and storage. Up to 2.5 hours of recording time or up to 1,000 pictures
• Shot activated video recording feature automatically captures before/after shot video
• FLIR’s patent pending HVT reticle technology provides clear reticle visibility against even the most difficult to discern backgrounds
• Multiple color palettes, reticle types and reticle colors
Refresh Rate 60 Hz
Objective Lens Type Germanium
Type of Focal Plane Array FLIR Boson
Pixel Array Format 320 x 256
Pixel Size 12 µm
Display Type Quad-VGA FLCOS
Pixel Display Format 1280 x 960
Turn-on Time, max <1.5 sec
Digital Zoom 1x, 2x and 4x
Image Palettes Urban Alert, Outdoor Alert, Artic, Sepia, Ironbow HC, Rainbow, Black Hot, White Hot
Reticle Type Dot 4 MOA, Line Dot, Cross Center Dot, Cross, Crosshair, and “No Reticle”
Reticle Color Black, White, Red, Cyan, and High Visibility
OPTICAL DATA
Objective Focal Length 19 mm
Objective F-number 1:1
Field of View (ang.) 12° x 9.5°
Eye Relief 45 mm
Focus Method Manual
Focusing Range 10 m to inf.
Diopter Adjustment Manual
Diopter Adjustment Range ±5 diopter
ELECTRICAL DATA
Battery Two CR123A 3V Lithium batteries or CR123 type rechargeable batteries with voltage from 3.0V to 3.7V (2)
Battery Life at 20°C (68 °F) Up to 4 hr (optional up to 12 hrs)
ENVIRONMENTAL DATA
Operating Temperature -20°C to +50°C (-4°F to +122°F)
Storage Temperature -40°C to +60°C (-40°F to +140°F)
MECHANICAL DATA
Overall Dimensions 220 × 68 × 84 mm (8.7 × 2.7 × 3.3 in)
Weight (w/o Batteries) 0.65 kg (1.44 lbs)
Weapon Mount Type Picatinny, MIL-STD 1913, and Weaver Rails
Height of the Scope Axis above Rail 42 mm (1.65 in)
WARRANTY DATA
Warranty 3 Years
Warranty on FLIR Detector 10 Years
Tech Specs
Thermal Imagers/Hunting and Outdoor Thermal Imagers Template
Detector Size 320 × 256 Sensor
Image Frequency 60 Hz
General Attributes
Warranty 3 YEARS
Product Weight 1.44 LBS
Warranty Details 10-year warranty on FLIR detector
Product Height 3.3 IN
Product Length 8.7 IN
Product Width 2.7 IN
Country of Origin United States
Test Equipment General Attributes
Unique Features •High resolution FLCOS display
•Digital Compass and Digital Inclinometer
• Multiple palettes
• Multiple selectable reticle patterns
• USB C connectivity
• Battery Status Indicator
• Rapid start-up
• Rugged construction
• Reliable quick-release locking weapon mount
Interfaces I/O USB
Storage Internal Memory
ECCN Number ITAR
Calibration Included None
Battery Type Other
Power Supply Voltage Battery Powered
