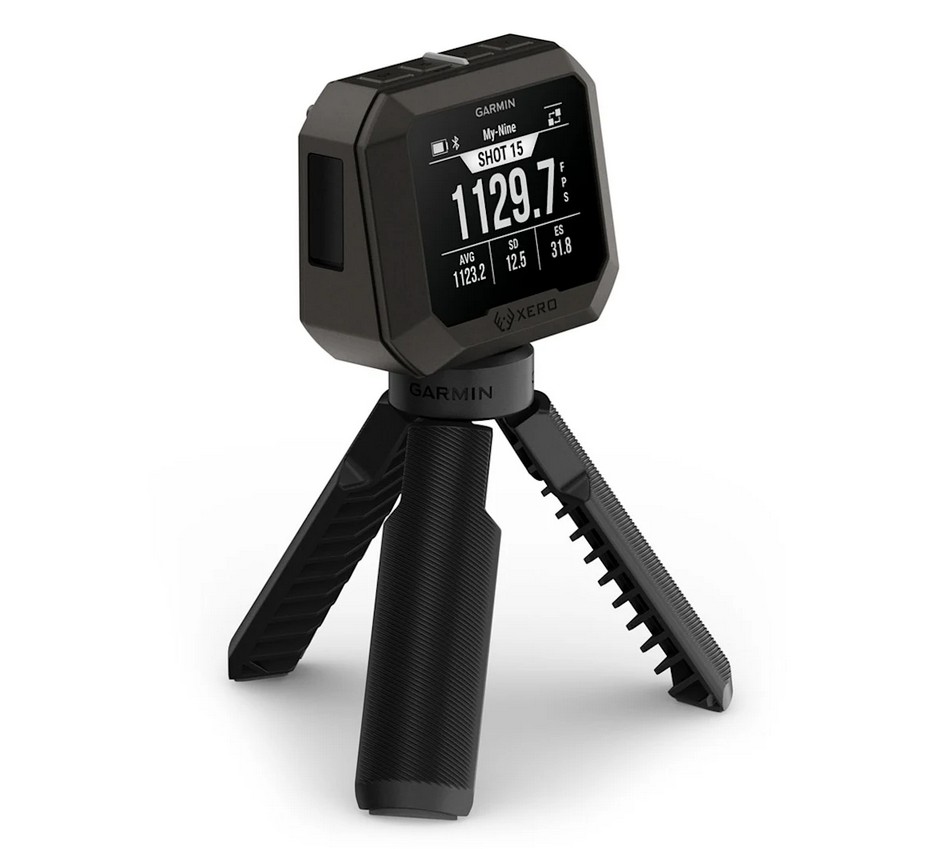

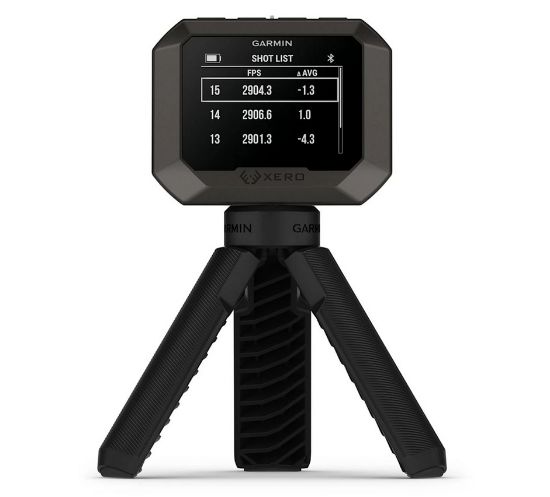

CAPTURE PRECISION. EXECUTE PERFECTION.
In ballistics there is no room for error. The Xero C2 chronograph is the source you can trust. It builds on the success of its predecessor with a faster shot processor and improved features for an experience you won’t find anywhere else.
- MEASURE PROJECTILE SPEEDS FROM 100 FPS TO 5,000 FPS
- COMPACT DESIGN FITS IN YOUR POCKET AND IS EASY TO SET UP
- VIEW LIVE DATA ON YOUR PAIRED GARMIN SMARTWATCH
- PAIR WITH THE SHOTVIEW™ SMARTPHONE APP
- RIFLE-MOUNTABLE DESIGN
- TRACKS UP TO 10 SHOTS PER SECOND WITH RAPID-FIRE SUPPORT

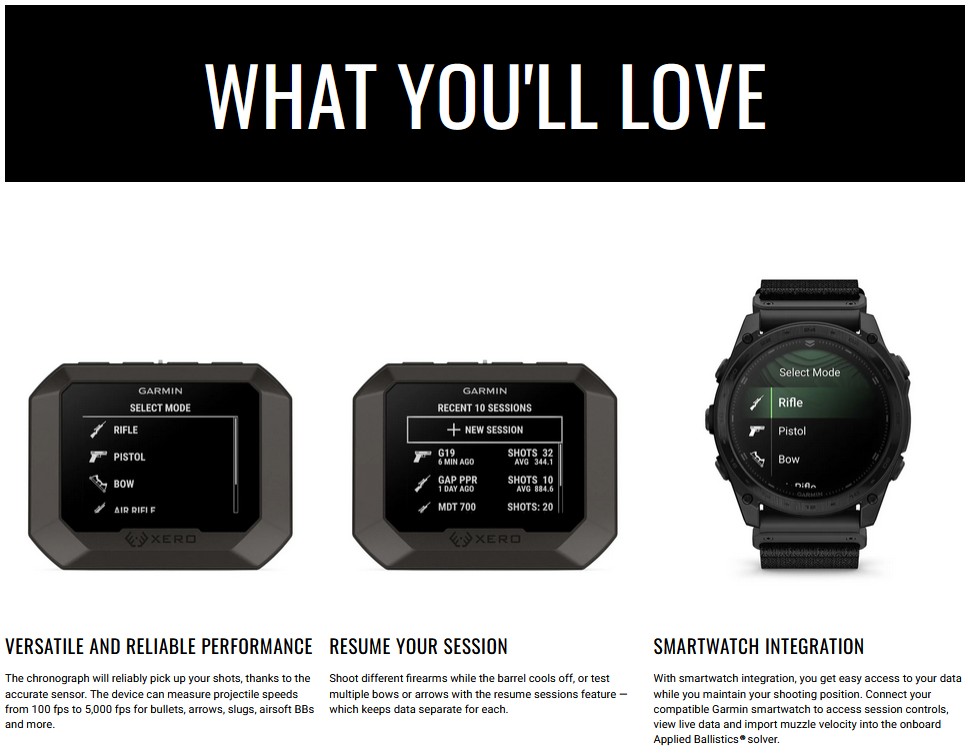

VERSATILE AND RELIABLE PERFORMANCE
The chronograph will reliably pick up your shots, thanks to the accurate sensor. The device can measure projectile speeds from 100 fps to 5,000 fps for bullets, arrows, slugs, airsoft BBs and more.
RESUME YOUR SESSION
Shoot different firearms while the barrel cools off, or test multiple bows or arrows with the resume sessions feature — which keeps data separate for each.
SMARTWATCH INTEGRATION
With smartwatch integration, you get easy access to your data while you maintain your shooting position. Connect your compatible Garmin smartwatch to access session controls, view live data and import muzzle velocity into the onboard Applied Ballistics solver.

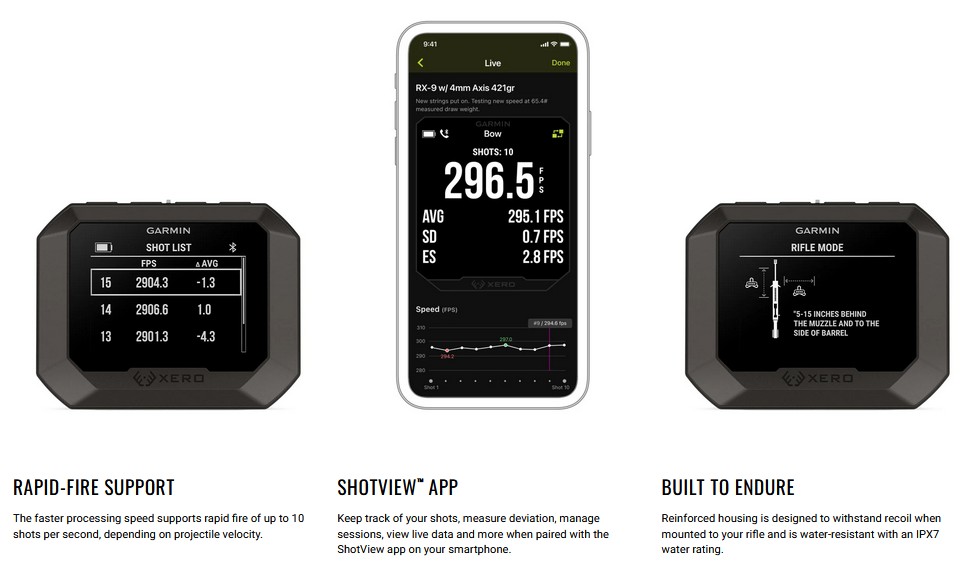

RAPID-FIRE SUPPORT
The faster processing speed supports rapid fire of up to 10 shots per second, depending on projectile velocity.
SHOTVIEW APP
Keep track of your shots, measure deviation, manage sessions, view live data and more when paired with the ShotView app on your smartphone.
BUILT TO ENDURE
Reinforced housing is designed to withstand recoil when mounted to your rifle and is water-resistant with an IPX7 water rating.
AB INTEGRATION
The Xero C2 chronograph works with the Applied Ballistics app to pull muzzle velocity straight into the AB Quantum app.
EASY TO OPERATE

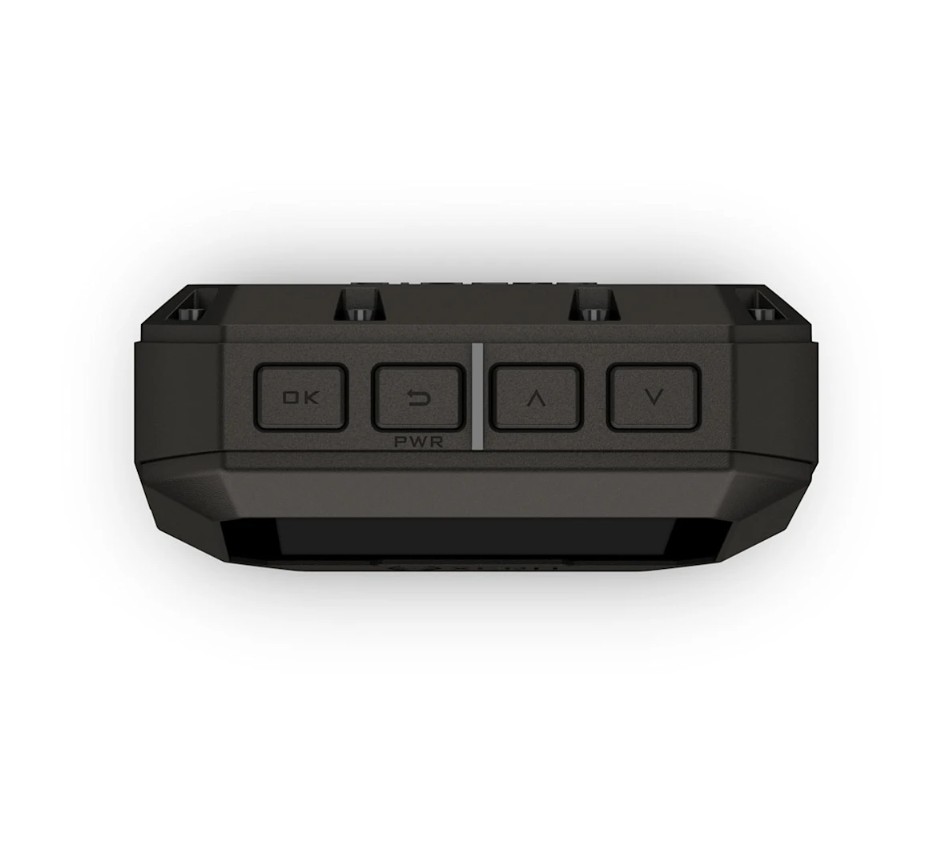

Indoor and outdoor operation is simple, thanks to the backlit display and button-operated design.
SIMPLE SETUP
Turn it on. Set it up. Point it in the direction of fire, and shoot. Yeah, really.
RECHARGEABLE BATTERY
With battery life up to 2,000 shots or up to 6 hours, you can take your time at the range.
SUPPRESSOR SUPPORT
The device picks up shots from suppressed firearms and firearms with muzzle brakes or compensators.
MULTIPLE DEVICE SUPPORT
Start a session on one device, and continue it on another device with the ShotView app.
General
Dimension: 3.03" (77 mm) x 2.38" (60.5 mm) x 1.36" (34.44 mm) without tripod / 5.1" (130 mm) x 4.5" (115 mm) x 5.5" (138.5 mm) with tripod
Weight: 123.2 g without tripod / 178.2 g with tripod
Water rating IPX7
Display Type sunlight-visible, transflective, monochrome
Display Size 1.3" x 1.7" (33 mm x 44 mm), 2.2" diagonal (55 mm)
Display resolution 240 x 320 pixels
Battery Type internal rechargeable lithium-ion battery
Battery life: up to 6 hours
Operating range -10° C to 55° C (14° F to 131° F)
Memory/History 200 sessions before a ShotView™ app sync is required to save data to phone
Interface USB-C
Daily Smart Features
Connectivity BLUETOOTH® technology
Mobile app ShotView™ app
Chronograph Features
Tracks rifles up to 5000 FPS
Tracks bows and crossbows up to 600 FPS
Track pistols up to 5000 FPS
Tracks air rifles up to 2000 FPS
Tracks airsoft up to 1000 FPS
Track other projectiles up to 5000 FPS
Calculates kinetic energy at muzzle
Calculates power factor
Calculates extreme spread
Calculates standard deviation
Calculates string average
Delete shots in string device or app
Decimal precision
Add individual shot notes yes (on ShotView™ app)
Add session notes yes (on ShotView™ app)
Mark shots with clean/cold bore yes (on ShotView™ app)
Exclude shot from average and standard dev calculations device or app
Tripod compatibility yes (¼-20 thread compatible)
In The Box:
Xero C2 chronograph
Protective cover
1/4-20 thread tripod
Charging/data cable
Documentation
