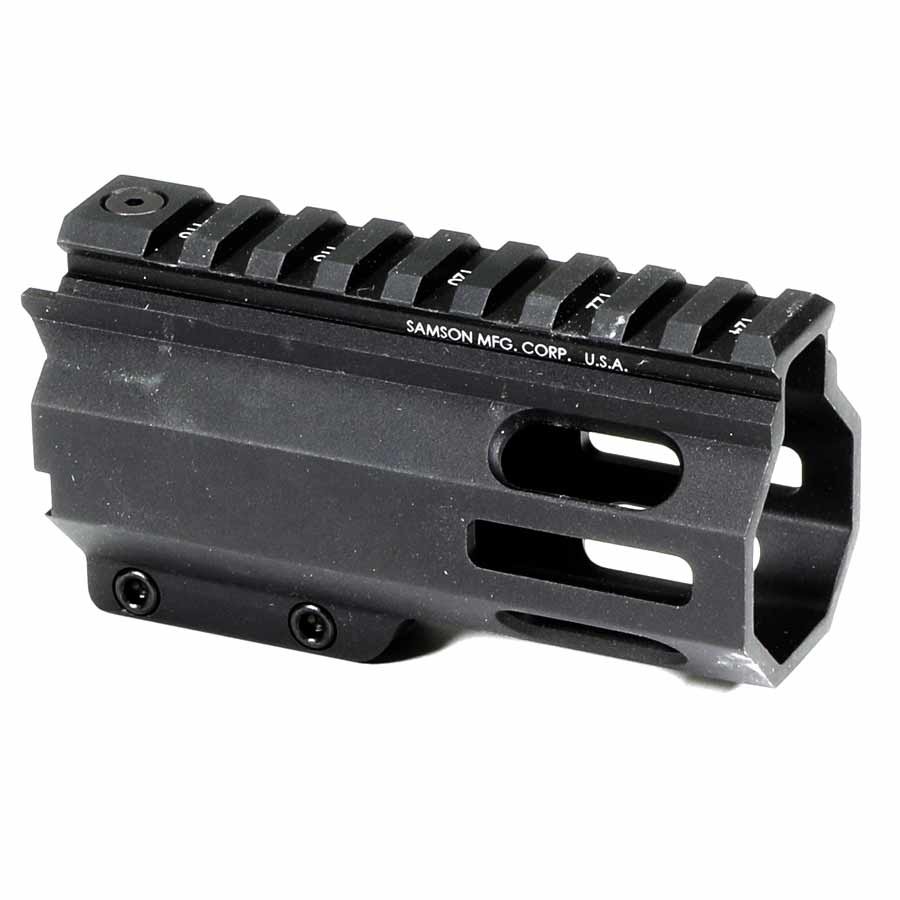

Samson SXT-Series M-LOK Handguard - 4 Inch
Have you ever wondered, "What's the best handguard for my AR-15?" The NEW SXT Series Handguards are a rugged, free-floating AR-15 handguard with an M-LOK attachment system. The simple clamping system uses two cross bolts which fit into the barrel nut for a rapid and easy installation. (The old SXS Series clamping system used a bias block on the bottom to secure the forearm to the barrel nut which required knurling).
Standard SXT Series Handguards are available in lengths of 4", 7", 9", 10", 11", 12" and 15" (See Specifications tab for actual lengths).
Includes: Hex wrench, barrel nut, and barrel nut wrench
Features:
- Easy to install mount clamping system
- Free float design
- Specifications:
- Material: 6061-T6 aluminum
- Finish: MIL-A-8625 type III class 2 anodizing
- For additional specifications click on the Specifications tab
- Made in New Hampshire USA
| Size |
Actual Length (in) |
Weight w/ Barrel Nut (oz) |
ID (in) |
OD (in) |
| 4 |
4.125" |
7.89 |
1.25" |
1.60" |
| 7 |
7.25" |
9.84 |
1.25"
|
1.60"
|
| 9 |
9.25" |
11.05 |
1.25"
|
1.60"
|
| 10 |
10"
|
11.50 |
1.25"
|
1.60"
|
| 11 |
11" |
12.29 |
1.25"
|
1.60"
|
| 12 |
12.625" |
13.28 |
1.25"
|
1.60"
|
| 15 |
15" |
15.25 |
1.25"
|
1.60"
|
